MODULA wall element straight

product-detail.model-9388.069

MODULA wall element straight

product-detail.model-9388.069

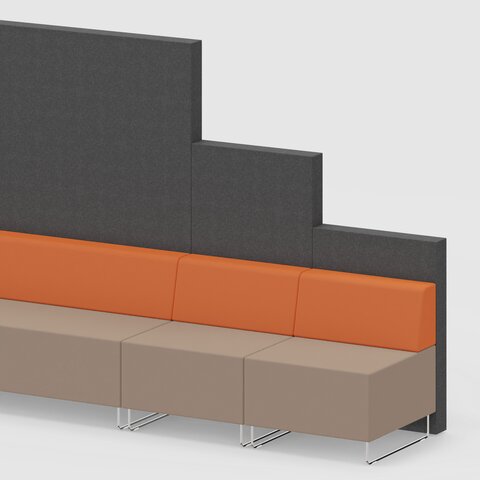

With its versatile combinable elements, the MODULA system offers countless possibilities for the creative furnishing and zoning of open learning landscapes.

Whether in learning rooms, rest or waiting areas - the inviting, open forms enable effective dual use of space (e.g. library/media library).

The acoustic effectiveness of the wall elements enables open, relaxed exchange and concentrated work in one room.

Configuration

Upholstery fabrics
FN 019
Terra
FN 020
Wine red
FN 018
Light green
FN 017
Dark green
FN 016
Mint
FN 015
Blue-gray
FN 014
Petrol
FN 013
Dark blue
FN 002
Nature melange
FN 001
Gray green melange
FN 005
Light gray melange
FN 004
Dark gray melange

Benefits/Specials

  • The sound-absorbing DOMINO screening walls form an optimal barrier against noise on both sides.
  • Optionally with 230 V socket insert and/or USB port, cable lead 2 m
  • Optionally fire protection certified according to DIN 66084 P-a with cover fabric B1
  • Easy to assemble without tools thanks to preassembled connecting elements
  • Can be combined with matching seating elements from the DOMINO series

Standard version

Sturdy wooden frame construction with fabric covering, including pre-assembled fasteners.

Note: Can only be combined with matching elements of the MODULA/DOMINO series.

Fabric properties

FLEECE Price group 1
100% polyester | flame retardant BS 5852:Part1:1979 (cigarette) | 402 g/m2 | 100,000 Martindale tours | linting 4 | ÖKO-Tex 100
WOOL Price group 3
100% wool | flame retardant according to EN 1021 1&2 | 460 g/m2 +/-5% | 35,000 Martindale tours | linting 4 | tested for harmful substances
PROTEX Price group 3
surface 100% vinyl / fabric 100% polyester | flame retardant according to EN 1021 1&2, DIN 4102 B2 | 685 g/m2 | 300,000 Martindale tours | no linting | wipeable with soap and water, water repellent, antibacterial, anti-static, stain resistant, resistant to blood and urine, mold resistant backing and surface, resistant to disinfectants
ARTIFICIAL LEATHER B1 Price group 4
85% PVC compound, 15% cotton knit | flame retardant according to EN 1021 1&2, DIN 4102 B1 | weight 780+/-50 g/m2 | 75,000 Martindale tours | no linting | tested for harmful substances | resistant to blood and urine, resistant to disinfectants
PROTEX B1 price group 4

surface 100% vinyl / fabric 100% cotton | flame retardant according to EN 1021 1&2, DIN 4102 B1 | 760 g/m2 | 300.000 tours Martindale | no linting

SPECIAL PROPERTIES: PERMABLOK3® - protection against germs, abrasion and stains: Antibacterial, antifungal, stain resistant, sulfide stain resistant, anti-fungal protection - mildew resistant backing and surface | disinfectant resistant, easy cleaning - wipeable with soap and water | antistatic surface

Tested to: ISO206B02 7/8 UV resistance | ISO 18184 & ISO 21702 virus-free surface to reduce corona virus | ISO 22196 for bacteria-free surface | ISO 16000 indoor air emission class A+

Tested for: Plasticizers and harmful substances - material requirements of toy standards EN 71-3 Safety of toys (migration of certain elements) and 2005/84/EC (phthalates in toys and childcare articles)

Standard

FEMB level:2017 (Level 3)

GS-zertifiziert gem. DIN EN 16139, DIN EN 1023-1, DIN EN 1023-2, DIN EN 16121, DIN EN 15372

for cover fabrics B1, optional:
highest certified fire protection safety according to DIN 66084 P-a (paper cushion test)

Downloads

Product spec sheet
Download

Options

  • Upholstery fabric PROTEX (price group 3)
  • Upholstery fabric WOOL (price group 3)
  • Upholstery fabric PROTEX B1 (P-a certified)
  • Upholstery fabric PROTEX B1
  • Upholstery fabric KUNSTLEDER B1 (P-a certified)
  • Cover fabric ARTIFICIAL LEATHER B1 (price group 4)
  • Electric set with 1x 230 V socket insert
  • Electric set with 1x USB port

Technical specifications

Total width ٦٩ cm
Total height ١٣٠ cm
Total depth ١١ cm
Weight ٢٣ kg
